Hex Mesh Twist pin/ Riveted (Hexmesh, Hexsteel, Hexgrate, Hexmetal)

Good quality Refractory Anchors for sales
Good quality Refractory Anchors for sales
Hi April, Yes we already send it to our user and no complain :-) Thank you for your support Sure will send you an email for another inquiry

—— Fellycia

I'm Online Chat Now

Hex Mesh Twist pin/ Riveted (Hexmesh, Hexsteel, Hexgrate, Hexmetal)

China Hex Mesh Twist pin/ Riveted (Hexmesh, Hexsteel, Hexgrate, Hexmetal) supplier
Hex Mesh Twist pin/ Riveted (Hexmesh, Hexsteel, Hexgrate, Hexmetal) supplier Hex Mesh Twist pin/ Riveted (Hexmesh, Hexsteel, Hexgrate, Hexmetal) supplier

Large Image :  Hex Mesh Twist pin/ Riveted (Hexmesh, Hexsteel, Hexgrate, Hexmetal)

Product Details:

Place of Origin: CHINA
Brand Name: GEYE
Model Number: HEX MESH TWIST PIN TYPE

Payment & Shipping Terms:

Packaging Details: STEEL PALLET
Delivery Time: 1~3 WEEKS
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description

Hex Mesh, Hexmesh, Hexsteel, Hexmetal, HexGrate, Hexagonal Mesh

Malla Hexagonal Refractario, WABENROST, HEXROST

Honeycomb Grating

Anchor Mesh, Anchors for Metal Refractory Linings



304H, 316, 321, 410S, 309S, 310S, RA330, Inconel Hexmesh & Hexsteel



Hexsteel is a an unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion. The panels are made of formed steel strips with protruding prongs clamped in such a way to guarantee a high rigidity of the panel also after the rolling.



Hexsteel can be supplied either flat or cut to size and rolled; after rolling, they can easily fit inside vessel walls and provide for a perfect continuity of the refractory lining for ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration, even with very narrow radii of as small as 15cm.



Geye has been manufacturing hexsteel for more than two decades, so we understand the strict performance and technical requirements that exist across a range of industries, including the major oil companies. Whether you need standard size panels, custom-shapes or rolled products, we have the equipment, expertise and experience to meet your needs quickly and cost-effectively. We can also manufacture customised hex mesh domes for the petro chemical industry.



Geye have the biggest production base of high-quality hexsteel in China. We can design & develop new molds, punching & stamping, particular cleaning way of stainless steel surface, which make our hexsteel able to meet the desire of all customers.

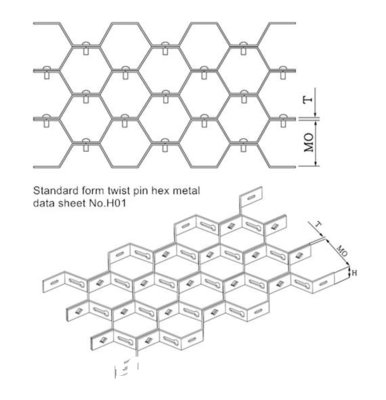

Hex Mesh Twist pin/ Riveted (Hexmesh, Hexsteel, Hexgrate, Hexmetal)



Available Materials:

Carbon Steel,

Stainless Steel: 410S, 304, 304H, 316, 321, 309S, 310S, 904L, etc.

Alloys: Inconel 601, Inconel 800, RA330, etc.



Applications:

Refining and petrochemical industry: armouring of vessel anti-corrosive linings; armouring of furnace refractory and anti-abrasive linings; armouring of refractory and anti-abrasive linings for cyclones, reactors and regenerators in the catalytic cracking process



Iron and steel industry: armouring of furnace refractory and anti-abrasive linings



Cement, lime and plaster: armouring for anti-abrasive linings for cyclones and piping in the cement production process



Environmental protection: armouring of incinerator refractory and anti-abrasive linings

Hex Mesh Twist pin/ Riveted (Hexmesh, Hexsteel, Hexgrate, Hexmetal)
