12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire

China 12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire supplier
12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire supplier 12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire supplier 12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire supplier 12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire supplier 12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire supplier

Large Image :  12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire

Product Details:

Place of Origin: CHINA
Brand Name: IDECO
Certification: ISO9001:2008
Model Number: IOWA and DRAKENSBERG

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD7-10/KG
Packaging Details: IN COILS
Delivery Time: 1-2 WEEKS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 TONS PER WEEK
Contact Now
Detailed Product Description
Material: Stainless Steel, Zinc Aluminium Alloy, HDG, PE, PVC Type: IOWA And DRAKENSBERG Barbed Wires

Barbed wires



Barbed wire, also known as barb wire, less often as bob wire or bobbed wire, is a type of steel fencing wire constructed with sharp edges or points arranged at intervals along the strands. It is used to construct inexpensive fences and is used atop walls surrounding secured property. It is also a major feature of the fortifications in trench warfare as a wire obstacles.



A person or animal trying to pass through or over barbed wire will suffer discomfort and possibly injury. Barbed wire fencing requires only fence posts, wire, and fixing devices such as staples. It is simple to construct and quick to erect, even by an unskilled person.



Barbed wire classification



Materials:

Zinc coated-Galvanized steel wire is the most widely steel wire during barbed wire production. It has commercial type, Class 1 type and Class 3 type. Or it is also well known as electric galvanized steel wire and hot dipped galvanized steel wire.



Zinc-aluminum alloy coated steel wire. Barbed wire is available with zinc, 5% or 10% aluminum alloy and mischmetal steel wire, which is also known as Galfan wire.



Polymer-coated steel wire. Zinc steel wire or zinc-aluminum steel wire with PVC, PE or other organic polymer coating.



Stainless steel wire. It is available with stainless steel 304, 316 and other materials.



Strand structure:

Single strand. Simple and light duty structure with single line wire (also known as strand wire) and barbs.



Double strand. Conventional structure with double strand wire (line wire) and barbs.

12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire 12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire
Single strand barbed wire Double strand barbed wire



Barbed structure:

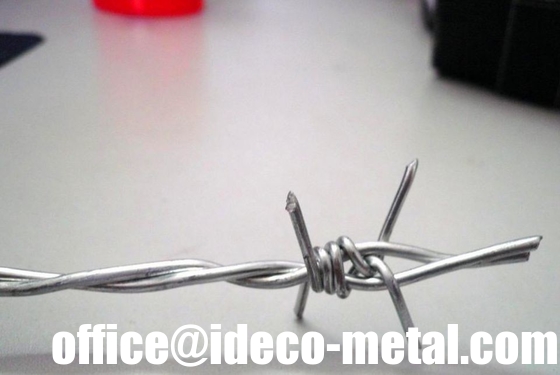

All our barbed wires are in double barbs, also known as 4-point barbed wire. Two barb wires twisted on the line wire (strand wire).



Twist type.

Conventional twist. The strand wire (line wire) are twisted in single direction, which is also known as traditional twist. Besides, the barb wires are twisted between the two strand wire (line wire).

Reverse twist. The strand wire (line wire) are twisted in opposite direction. Besides, the barb wires are twisted outside of the two line wire.

12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire 12G Stainless steel/PVC/ Galfan/ Galvanised Single/ Double strand 4 Points Barbed Wires, Bobbed wire
Traditional twist barbed wire Reverse twist barbed wire



Approximate Length per KG in Meter

Galvanized Barbed Wire

Wire Dia.

B.W.G.

Approximate Length per KG in Meter
Barb Distance 3" Barb Distance 4" Barb Distance 5" Barb Distance 6"
12x12 6.0617 6.7590 7.2700 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.7190 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.5620
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.6590 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.5070
15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386

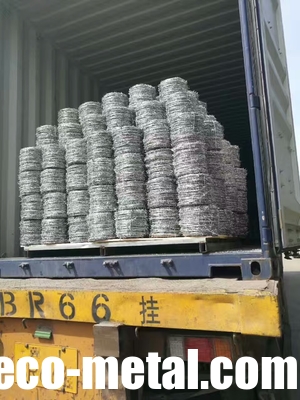

Packing: Standard packed 25kg per coil. Wooden or plastic spools also available upon request.

HS code: 73130000.

Loading Qty: a 20’GP can loaded with 20-23 tons.
