| Material: | HRB400 |
|---|
Welded Reinforcing steel bar Truss Girder, Rebar wire truss lattice girder for metro railways

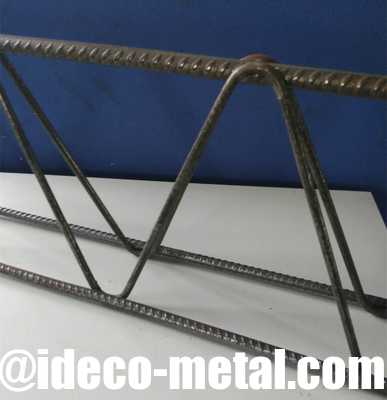

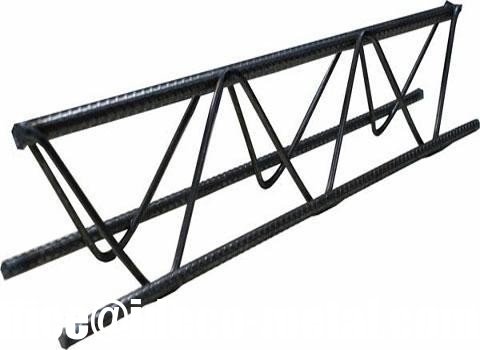

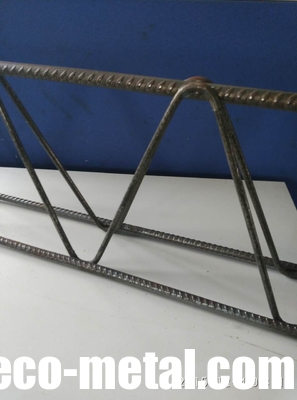

Steel bar reinforcement girder have a triangular shape, are electro-welded and have three deformed longitudinal bars (one upper and two lower). They are joined by a smooth diagonal bar in a pattern. They are widely used in the construction of floors and railway, like in-situ concrete structure, steel construction, concrete precast wall elements, high speed railway sleepers, etc.
| Specification | ||||
|
Girder height |
Top & bottom bar dia. | Diagonal bar dia. |
Girder length |
Girder width |
| 70mm-350mm | 6mm-12mm | 4mm-7mm | 1m-12m | 70mm-125mm |
